ADF4360-8BCPZRL7 IC SYNTHESIZER VCO 24LFCSP

Short Description:

Mfr.Part: ADF4360-8BCPZRL7

Manufacturer: Analog Devices Inc.
Package: 24-WFQFN Exposed Pad, CSP

Description: Fanout Distribution, Integer N Synthesizer (RF) IC 400MHz 1 24-WFQFN Exposed Pad, CSP

Datasheet: Please contact us


Product Detail

Product Tags

Product Parameter

Description

The ADF4360-8 is an integrated integer-N synthesizer and voltage-controlled oscillator (VCO). The ADF4360-8 center frequency is set by external inductors. This allows a frequency range of between 65 MHz to 400 MHz. Control of all the on-chip registers is through a simple 3-wire interface. The device operates with a power supply ranging from 3.0 V to 3.6 V and can be powered down when not in use.



Specifications:
 Attribute Value
Category Integrated Circuits (ICs)
Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers
Mfr Analog Devices Inc.
Series -
Package Tray
Part Status Active
Type Fanout Distribution, Integer N Synthesizer (RF)
PLL Yes
Input CMOS, TTL
Output Clock
Number of Circuits 1
Ratio - Input:Output 1:02
Differential - Input:Output No/No
Frequency - Max 400MHz
Divider/Multiplier Yes/No
Voltage - Supply 3V ~ 3.6V
Operating Temperature -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 24-WFQFN Exposed Pad, CSP
Supplier Device Package 24-LFCSP (4x4)
Base Product Number ADF4360

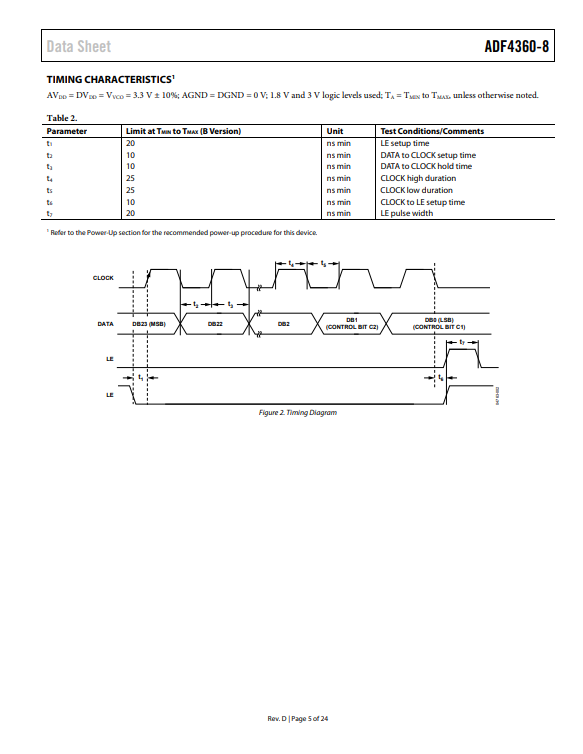

ADF4360-8 1



ADF4360-8 2
