Description

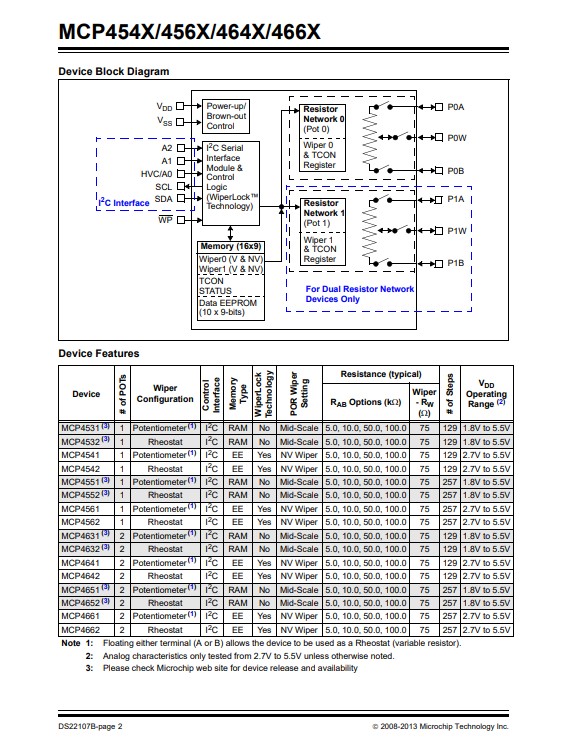

The MCP45XX and MCP46XX devices offer a wide range of product offerings using an I2C interface. This family of devices support 7-bit and 8-bit resistor networks, nonvolatile memory configurations, and Potentiometer and Rheostat pinouts.
Specifications: | |
Attribute | Value |
Category | Integrated Circuits (ICs) |
Data Acquisition - Digital Potentiometers | |
Mfr | Microchip Technology |
Series | - |
Package | Tube |
Part Status | Active |
Taper | Linear |
Configuration | Potentiometer |
Number of Circuits | 2 |
Number of Taps | 257 |
Resistance (Ohms) | 50k |
Interface | I²C |
Memory Type | Non-Volatile |
Voltage - Supply | 1.8V ~ 5.5V |
Features | Mute, Selectable Address |
Tolerance | ±20% |
Temperature Coefficient (Typ) | 150ppm/°C |
Mounting Type | Surface Mount |
Supplier Device Package | 14-TSSOP |
Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
Operating Temperature | -40°C ~ 125°C |
Resistance - Wiper (Ohms) (Typ) | 75 |
Base Product Number | MCP4661 |
