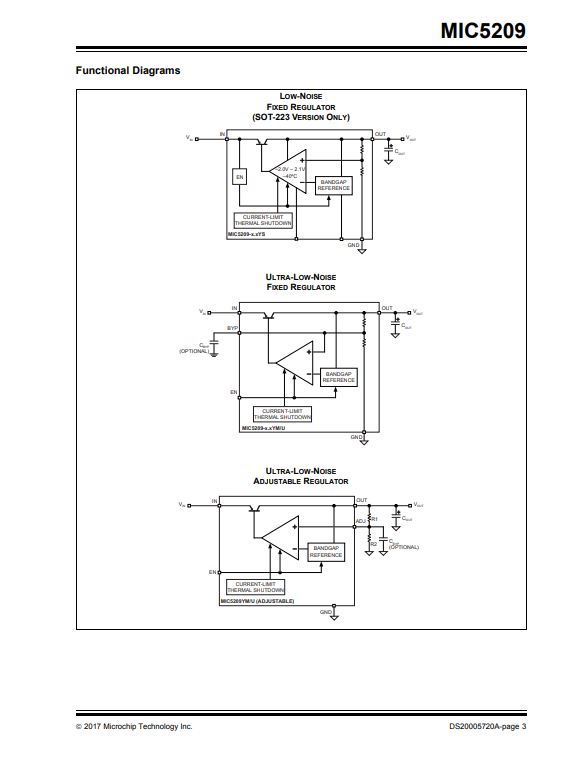

Description
The MIC5209 is an efficient linear voltage regulator with very low dropout voltage, typically 10 mV at light loads and less than 500 mV at full load, with better than 1% output voltage accuracy. Designed especially for hand-held, battery-powered devices, the MIC5209 features low ground current to help prolong battery life. An enable/shutdown pin on the SOIC-8 and DDPAK versions can further improve battery life with near-zero shutdown current. Key features include reversed-battery protection, current limiting, overtemperature shutdown, ultra-low-noise capability (SOIC-8 and DDPAK versions), and is available in thermally efficient packaging. The MIC5209 is available in adjustable or fixed output voltages.
Specifications: | |
Attribute | Value |
Category | Integrated Circuits (ICs) |
PMIC - Voltage Regulators - Linear | |
Mfr | Microchip Technology |
Series | - |
Package | Tube |
Part Status | Active |
Output Configuration | Positive |
Output Type | Fixed |
Number of Regulators | 1 |
Voltage - Input (Max) | 16V |
Voltage - Output (Min/Fixed) | 3.3V |
Voltage - Output (Max) | - |
Voltage Dropout (Max) | 0.6V @ 500mA |
Current - Output | 500mA |
Current - Quiescent (Iq) | 170 µA |
Current - Supply (Max) | 25 mA |
PSRR | 75dB (120Hz) |
Control Features | - |
Protection Features | Over Current, Over Temperature, Reverse Polarity |
Operating Temperature | -40°C ~ 125°C |
Mounting Type | Surface Mount |
Package / Case | TO-261-4, TO-261AA |
Supplier Device Package | SOT-223-3 |
Base Product Number | MIC5209 |
