MSP430F169IPMR IC MCU 16BIT 60KB FLASH 64LQFP

Short Description:

Mfr.Part: MSP430F169IPMR

Manufacturer: Texas Instruments

Package: 64-LQFP

Descripti0n: MSP430 series Microcontroller IC 16-Bit 8MHz 60KB (60K x 8 + 256B) FLASH 64-LQFP (10×10)

Datasheet: Please contact us.


Product Detail

Product Tags

Product Parameter

Description

The MSP430F15x/16x/161x series are microcontroller configurations with two built-in 16-bit timers, a fast 12-bit A/D converter, dual 12-bit D/A converter, one or two universal serial synchronous/asynchronous communication interfaces (USART), I2C, DMA, and 48 I/O pins. In addition, the MSP430F161x series offers extended RAM addressing for memory-intensive applications and large C-stack requirements.Typical applications include sensor systems, industrial control applications, hand-held meters, etc.



Specifications:
 Attribute Value
Category Integrated Circuits (ICs)
Embedded - Microcontrollers
Mfr Texas Instruments
Series MSP430x1xx
Package Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Part Status Active
Core Processor MSP430
Core Size 16-Bit
Speed 8MHz
Connectivity I²C, SPI, UART/USART
Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT
Number of I/O 48
Program Memory Size 60KB (60K x 8 + 256B)
Program Memory Type FLASH
EEPROM Size -
RAM Size 2K x 8
Voltage - Supply (Vcc/Vdd) 1.8V ~ 3.6V
Data Converters A/D 8x12b; D/A 2x12b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 64-LQFP
Supplier Device Package 64-LQFP (10x10)
Base Product Number 430F169

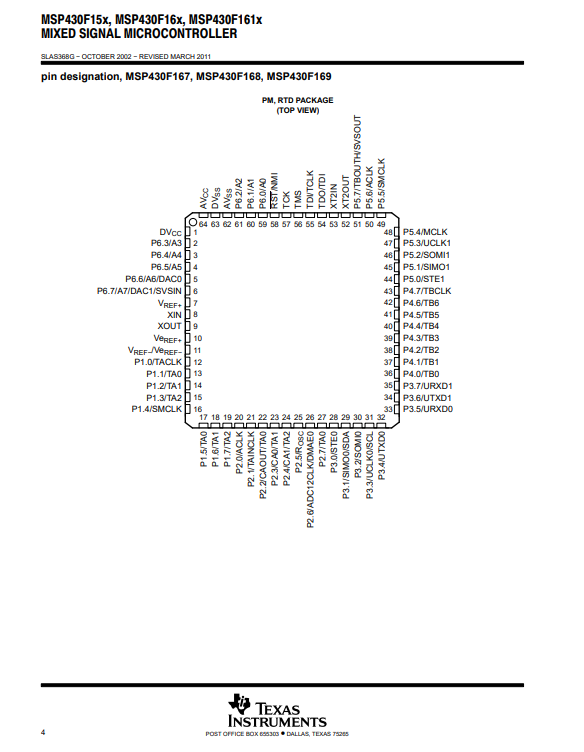

MSP430F169 1



MSP430F169 2
