Description

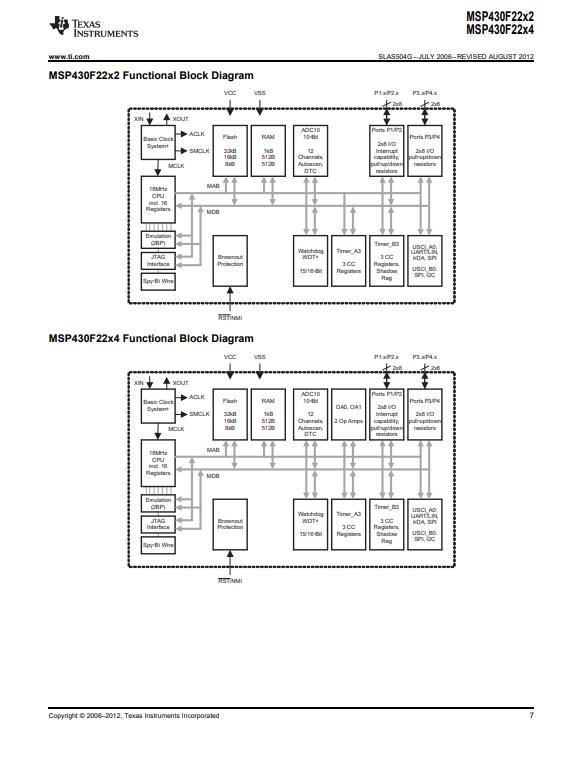

The Texas Instruments MSP430™ family of ultra-low-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs. The MSP430F22x4/MSP430F22x2 series is an ultra-low-power mixed signal microcontroller with two built-in 16- bit timers, a universal serial communication interface, 10-bit A/D converter with integrated reference and data transfer controller (DTC), two general-purpose operational amplifiers in the MSP430F22x4 devices, and 32 I/O pins.
Specifications: | |
Attribute | Value |
Category | Integrated Circuits (ICs) |
Embedded - Microcontrollers | |
Mfr | Texas Instruments |
Series | MSP430F2xx |
Package | Tape & Reel (TR) |
Cut Tape (CT) | |
Digi-Reel® | |
Part Status | Active |
Core Processor | MSP430 |
Core Size | 16-Bit |
Speed | 16MHz |
Connectivity | I²C, IrDA, LINbus, SCI, SPI, UART/USART |
Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
Number of I/O | 32 |
Program Memory Size | 32KB (32K x 8 + 256B) |
Program Memory Type | FLASH |
EEPROM Size | - |
RAM Size | 1K x 8 |
Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
Data Converters | A/D 12x10b |
Oscillator Type | Internal |
Operating Temperature | -40°C ~ 85°C (TA) |
Mounting Type | Surface Mount |
Package / Case | 38-TSSOP (0.240", 6.10mm Width) |
Base Product Number | 430F2272 |
