MSP432P401RIPZR IC MCU 32BIT 256KB FLASH 100LQFP

Short Description:

Mfr.Part: MSP432P401RIPZR
Manufacturer: Texas Instruments
Package: 100-LQFP
Description: ARM® Cortex®-M4F series Microcontroller IC 32-Bit 48MHz 256KB (256K x 8) FLASH 100-LQFP (14×14)

Datasheet: Please contact us.


Product Detail

Product Tags

Product Parameter

Description

The MSP432P401x microcontroller (MCU) family is TI's latest addition to its portfolio of efficient ultra-lowpower mixed-signal MCUs. The MSP432P401x MCUs feature the ARM Cortex-M4 processor in a wide configuration of device options including a rich set of analog, timing, and communication peripherals, thereby catering to a large number of application scenarios where both efficient data processing and enhanced low-power operation are paramount. Overall, the MSP432P401x is an ideal combination of the TI MSP430™ low-power DNA, advance mixedsignal features, and the processing capabilities of the ARM 32-bit Cortex-M4 RISC engine. The devices ship with bundled peripheral driver libraries and are compatible with standard components of the ARM ecosystem.

Specifications:
 Attribute Value
Category Integrated Circuits (ICs)
Embedded - Microcontrollers
Mfr Texas Instruments
Series MSP432™
Package Tape & Reel (TR)
Cut Tape (CT)
Digi-Reel®
Part Status Obsolete
Core Processor ARM® Cortex®-M4F
Core Size 32-Bit
Speed 48MHz
Connectivity I²C, IrDA, SPI, UART/USART
Peripherals DMA, POR, PWM, WDT
Number of I/O 84
Program Memory Size 256KB (256K x 8)
Program Memory Type FLASH
EEPROM Size -
RAM Size 64K x 8
Voltage - Supply (Vcc/Vdd) 1.62V ~ 3.7V
Data Converters A/D 26x14b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 100-LQFP
Supplier Device Package 100-LQFP (14x14)
Base Product Number MSP432



MSP432 1

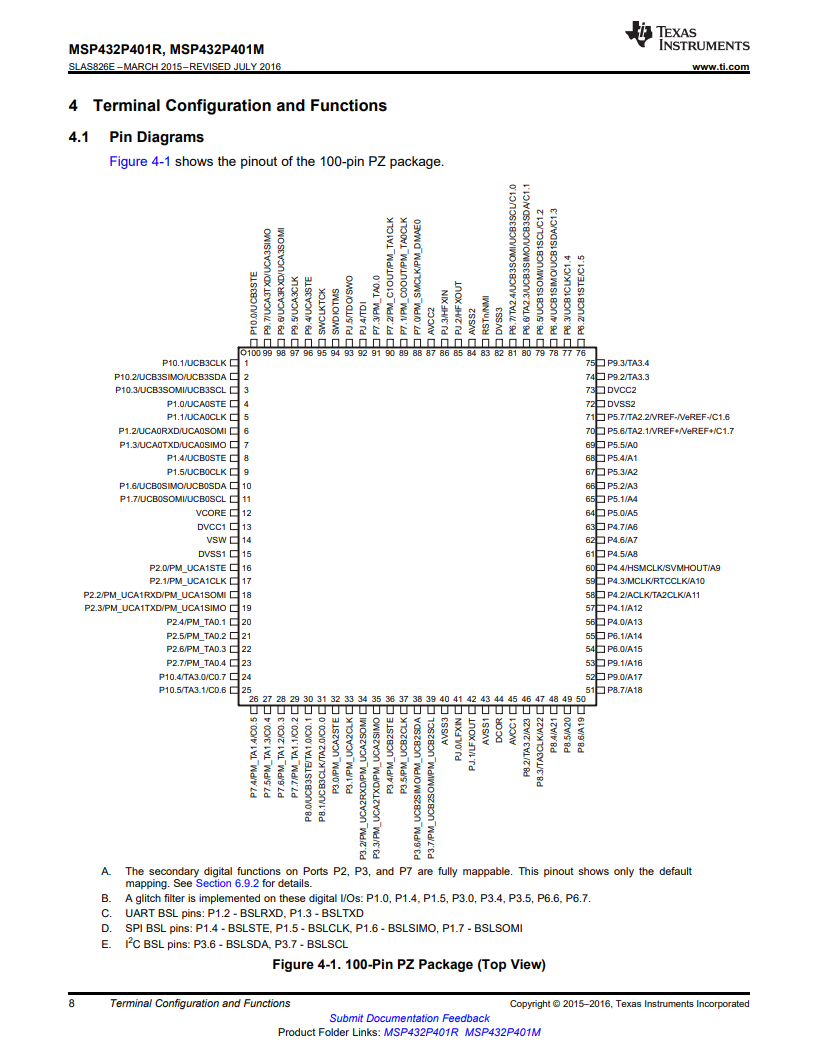

MSP432 2
