OV5640 camera module 90degree DVP interface support ESP32

Short Description:

Application:DVP
Customized support:Customized logo, OEM, ODM, Software reengineering
Camera module:camera module OV5640
Sensor Type:OV5640
Pixels:5MP
Sensor size:1/4-inch CMOS Sensor
Lens FOV:68degree
Focus:fixed
Resolution:1080P 720P
Packaging:FPC camera module 500W
PixelsInterface Mode:24Pin FPC


Product Detail

Product Tags

Active array size: 2592×1944 Power supply: core:1.5V±5% with embedded 1.5V regulator) Analog: 26~3.0V (2.8V typical) I/0: 1.8V/2.8V power requirements: active: TBD standby: TBD  Temperature range: operating: 30°C to 70°C (see table 8-1) Stable image: 0C to 50°C (see table 8-1) Output formats:8-/10-bit RGB RAW output  Lens size: 1/4″  Lens chief ray angle:24″(see figure 10-2)  Input clock frequency: 6-27 MHz S/N ratio: TBD dynamic range: TBD
Connector
CSI
Chip
OV5640
Pixel
5MP
Cable length
65mm 8mm optional
1.4um×1.4 um pixel with OmniBSI technology for high performance (high sensitivity, low crosstalk, low noise, improved quantum efficiency)  Optical size of 14″ Automatic image control funcfions: automatic exposure control (AEC), automatic white balance (AWB), automafic band filter (ABF), automatic 50/60 Hz luminance detection, and automatic black level calibration (ABLC) Programmable controls for frame rate, AEC/AGC 16-zone size/position/weight control, mirror and flip, cropping, windowing, and panning  Image quality controls: color saturation, hue, gamma sharpness(edge ​​enhancement), lens correction, defective pixel canceling, and noise canceling  Support for output fomats: RAW RGB, RGB565/555/444, CCIR656, YUV422/420, YCbCr422, and compression Support for video or snapshot operaions support for LED and flash strobe mode Support for internal and external frame synchronization for frame exposure mode

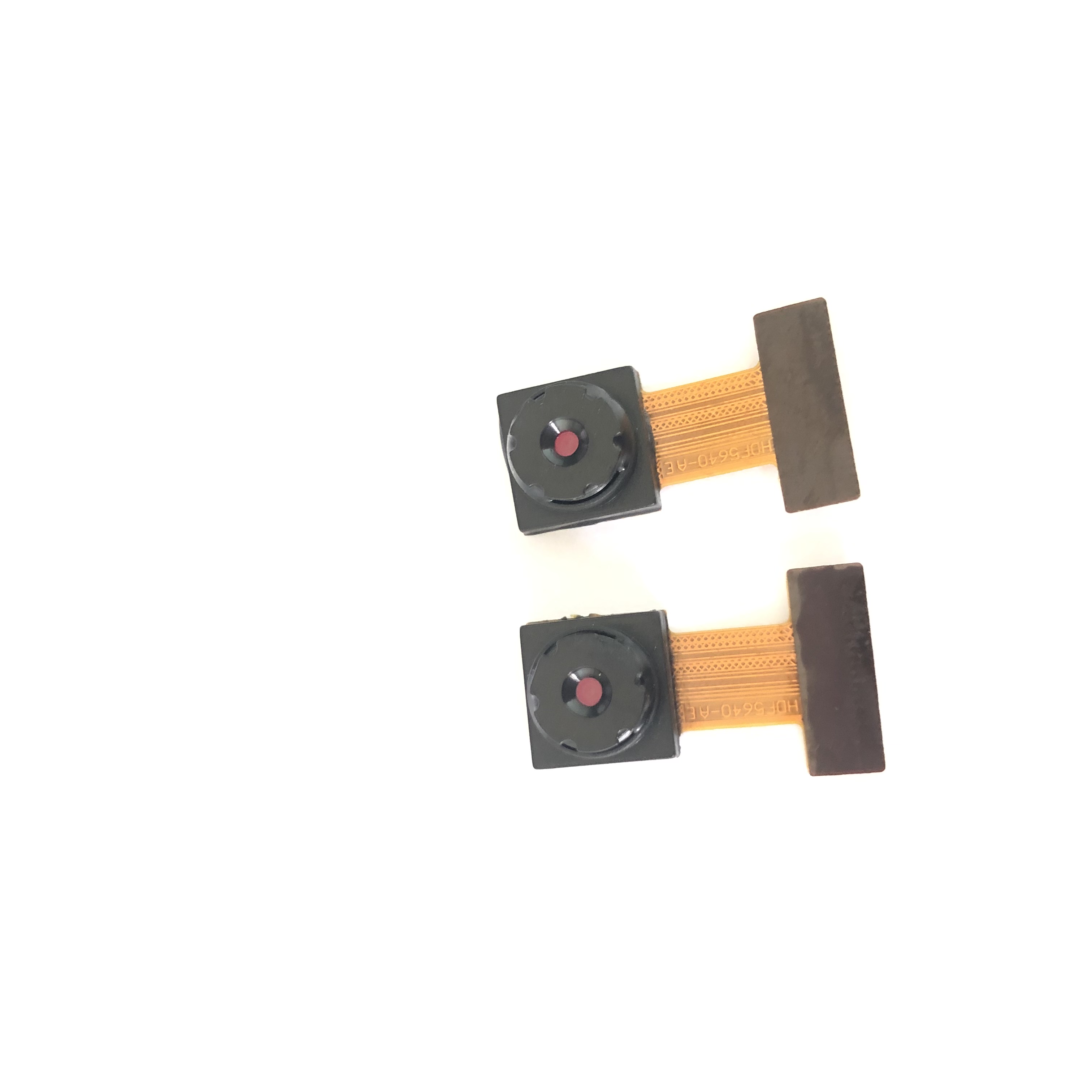

YXF-HDF5640-A-90 (3) YXF-HDF5640-A-90 (6) YXF-HDF5640-A-90 (5) YXF-HDF5640-A-90 (4)YXF-HDF5640-A-90 详情页 YXF-HDF5640-A-90 详情页2
