PIC16F1933-I/SS IC MCU 8BIT 7KB FLASH 28SSOP

Short Description:

Mfr.Part: PIC16F1933-I/SS

Manufacturer: Microchip Technology
Package: 28-SSOP
Description: PIC series Microcontroller IC 8-Bit 32MHz 7KB (4K x 14) FLASH 28-SSOP

Datasheet: Please contact us.


Product Detail

Product Tags

Product Parameter

Description

This family of devices contain an enhanced mid-range 8-bit CPU core. The CPU has 49 instructions. Interrupt capability includes automatic context saving. The hardware stack is 16 levels deep and has Overflow and Underflow Reset capability. Direct, Indirect, and Relative addressing modes are available. Two File Select Registers (FSRs) provide the ability to read program and data memory. • Automatic Interrupt Context Saving • 16-level Stack with Overflow and Underflow • File Select Registers • Instruction Set.



Specifications:
 Attribute Value
Category Integrated Circuits (ICs)
Embedded - Microcontrollers
Mfr Microchip Technology
Series PIC® XLP™ 16F
Package Tube
Part Status Active
Core Processor PIC
Core Size 8-Bit
Speed 32MHz
Connectivity I²C, LINbus, SPI, UART/USART
Peripherals Brown-out Detect/Reset, LCD, POR, PWM, WDT
Number of I/O 25
Program Memory Size 7KB (4K x 14)
Program Memory Type FLASH
EEPROM Size 256 x 8
RAM Size 256 x 8
Voltage - Supply (Vcc/Vdd) 1.8V ~ 5.5V
Data Converters A/D 11x10b
Oscillator Type Internal
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 28-SSOP (0.209", 5.30mm Width)
Supplier Device Package 28-SSOP
Base Product Number PIC16F1933

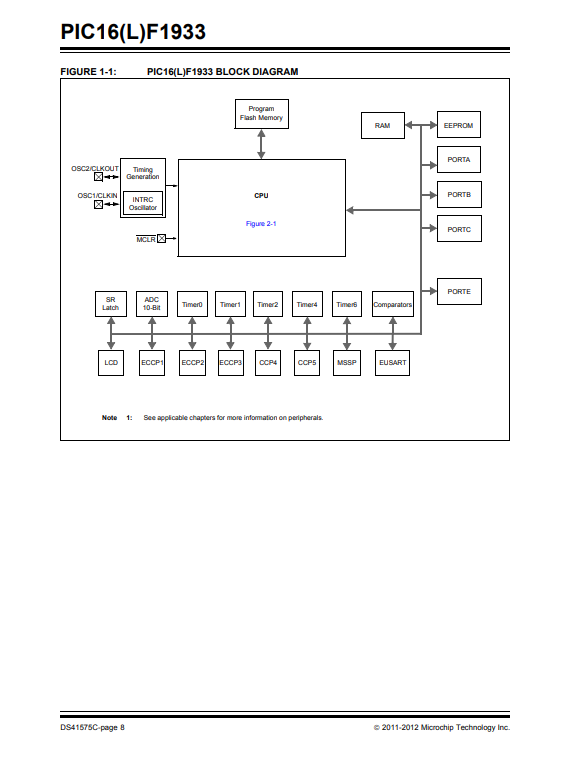

PIC16F1933 1



PIC16F1933 2
