S9S08DZ60F2MLC IC MCU 8BIT 60KB FLASH 32LQFP

Short Description:

Mfr.Part: S9S08DZ60F2MLC

Manufacturer: NXP
Package:32-LQFP
Description: S08 series Microcontroller IC 8-Bit 40MHz 60KB (60K x 8) FLASH 32-LQFP (7×7)

Datasheet: Please contact us.


Product Detail

Product Tags

Product Parameter

Description

MC9S08DZ60 Series devices provide significant value to customers looking to combine Controller Area Network (CAN) and embedded EEPROM in their applications. This combination will provide lower costs, enhanced performance, and higher quality.



Specifications:
 Attribute Value
Category Integrated Circuits (ICs)
Embedded - Microcontrollers
Mfr NXP USA Inc.
Series S08
Package Tray
Part Status Active
Core Processor S08
Core Size 8-Bit
Speed 40MHz
Connectivity CANbus, I²C, LINbus, SCI, SPI
Peripherals LVD, POR, PWM, WDT
Number of I/O 25
Program Memory Size 60KB (60K x 8)
Program Memory Type FLASH
EEPROM Size 2K x 8
RAM Size 4K x 8
Voltage - Supply (Vcc/Vdd) 2.7V ~ 5.5V
Data Converters A/D 10x12b
Oscillator Type External
Operating Temperature -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 32-LQFP
Supplier Device Package 32-LQFP (7x7)
Base Product Number S9S08

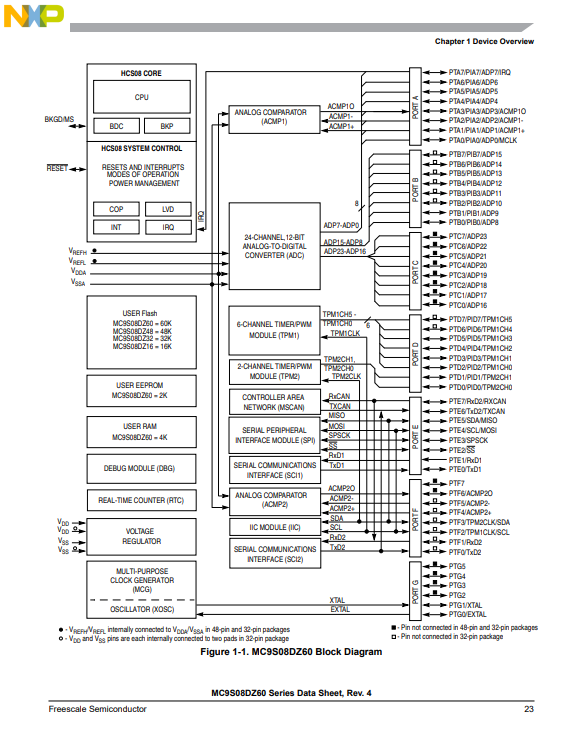

9S08DZ 1



9S08DZ 2
